Competitive 60% keyboard | Rapid trigger | True 8kHz Polling
The original Wooting 60HE set a new standard when it launched three years ago. Since then, we’ve refined every part of the design. The 60HE v2 introduces a stronger chip, a durable aluminium housing, and a range of improvements that elevate both the typing feel and sound.

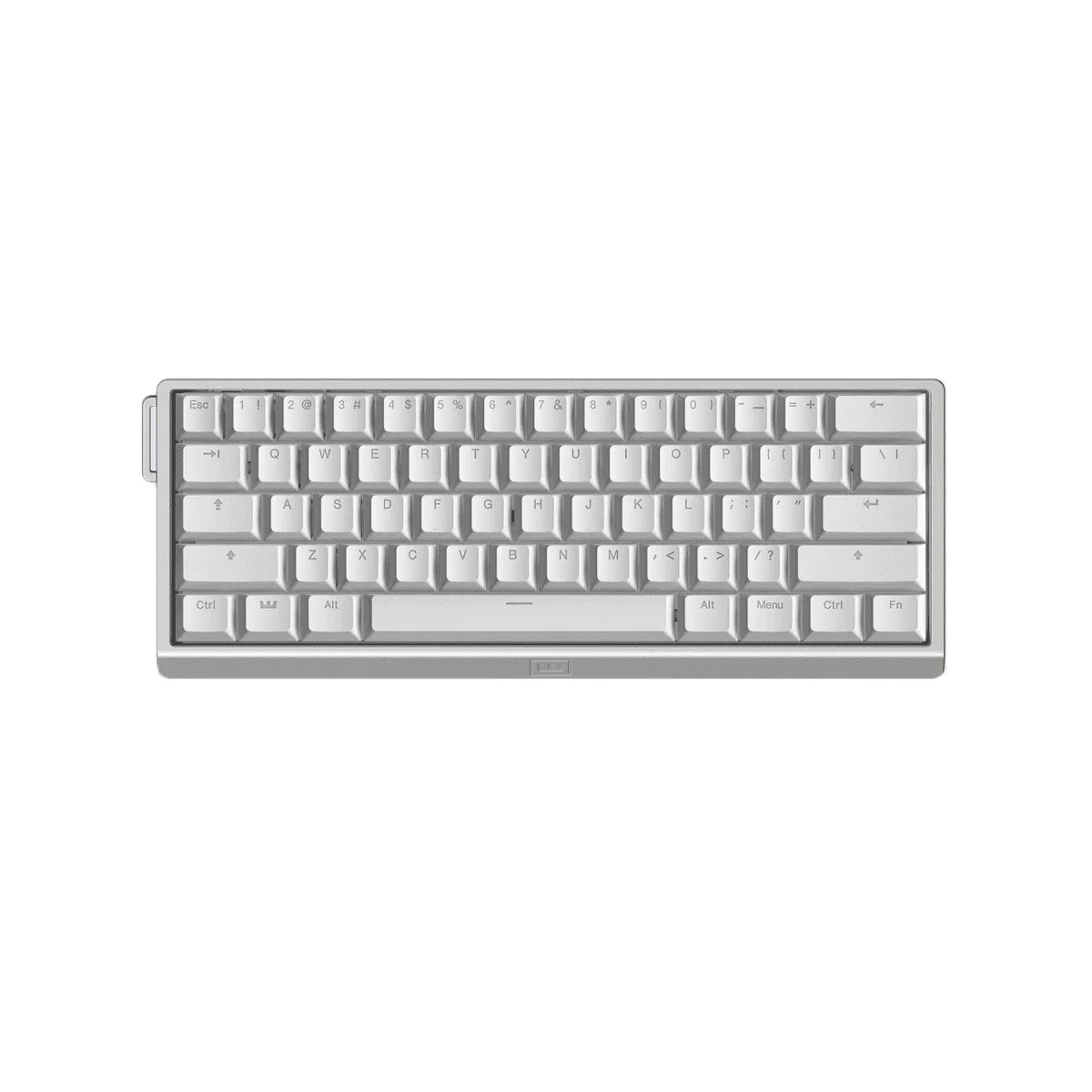

The Wooting 60HE v2 is an analog keyboard in a 60% layout that uses hall effect sensors to register exactly how far a key is pressed down, which unlocks a range of features that provide more in game control and lower input latency.
Split- or regular spacebar layout The split-spacebar option offers added control and flexibility for users who want more functionality in their layout. Those who prefer a classic setup can still choose the standard single-spacebar configuration.
Rapid Trigger Experience the best implementation of Rapid Trigger by its original inventors, giving you a real competitive edge in gaming.
Adjustable actuation You decide how far a key needs to be pressed down for it to activate. Configurable per key in 0.1mm steps, from 0.1mm up to 4.0mm.
True 8kHz Polling An upgraded chip delivers consistent input response of roughly 0.125 ms. It supports genuine 8 kHz polling, with the entire keyboard scanning at that same frequency in full synchronization.
Tachyon mode Turn on Tachyon mode to prioritize keyboard scanning over RGB effects. Turn on Tachyon mode to enable True 8kHz Polling.
Lekker Tikken switches Hot swappable, closed bottom switches with a full 4mm actuation range and long spring for extra control. The Lekker Tikken switch sounds slightly muted, and deeper than most other Hall effect switches.
Durability Because of the high durability of the keyboard, Wooting offers a 4-year warranty.
Standard 60% form factor The PCBA is compatible with most third party cases, so customize to your own liking.
Bottom case dampening The Wooting 60HE v2 has a silicone layer by default that can be swapped out with an EPDM foam layer, or removed completely to obtain different sound profiles.
FR4 plate The FR4 plate offers a mix of stiffness and controlled flex. Its rigidity keeps keystrokes steady and reduces unwanted bounce, which helps maintain precision during gameplay. It also produces a soft, muted tone with a warm, woody character.
Interchangeable strap mounts The Wooting strap has become a recognizable part of many builds, but the 60HE v2 now includes both strap and no-strap mounting options, giving users the freedom to choose the look they prefer.
PET film layer An added PET film layer, positioned beneath the switches, softens sharper frequencies and helps create a cleaner, more marbly overall sound profile.
Friction fit The friction-fit pad keeps the PCBA firmly in place without the need for screws. This reduces vibration and case resonance, resulting in a smoother feel and a deeper, cleaner sound. Not all 60% cases fit the friction fit pad.
Properties
| Mechanical switches |
Yes |
| Switch type |
Lekker switches |
| Form factor |
60% |
| Button material |
PBT |
| N-key rollover |
Yes |
| Hotswap |
Yes |
| Colour |
Just Black, Bright Silver |
| Rapid Trigger |
Yes |
| Per-key Rapid Trigger |
Yes |
| Adjustable Actuation |
Yes |
| Per-key RGB |
Yes |
| Spill resistant |
Yes |
| Switch |
Lekker Tikken Medium, pre-lubed |
| Polling rate |
8kHz |
| Remap keys |
Yes |
| Input latency |
<0.125ms |
| Connection |
USB-C |

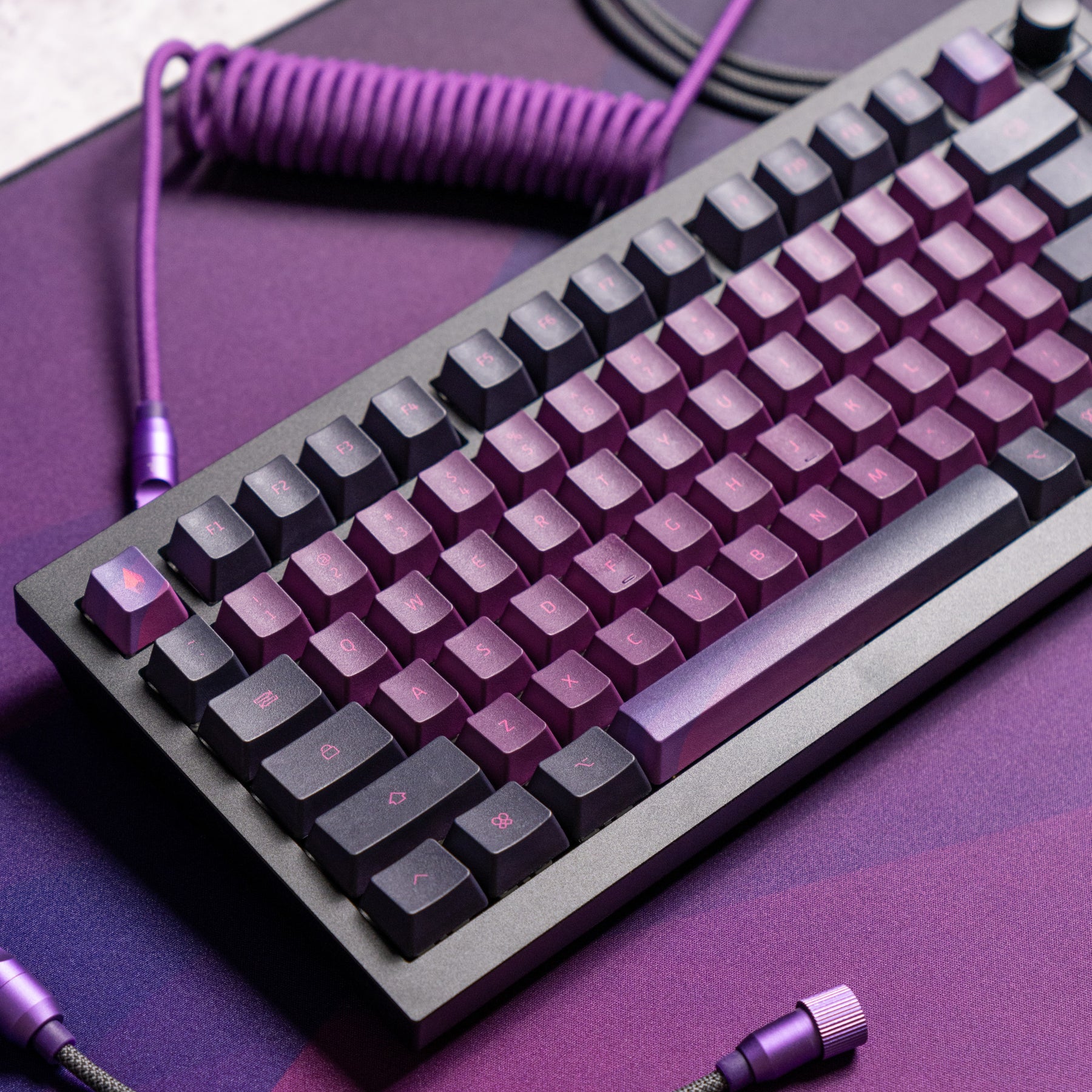

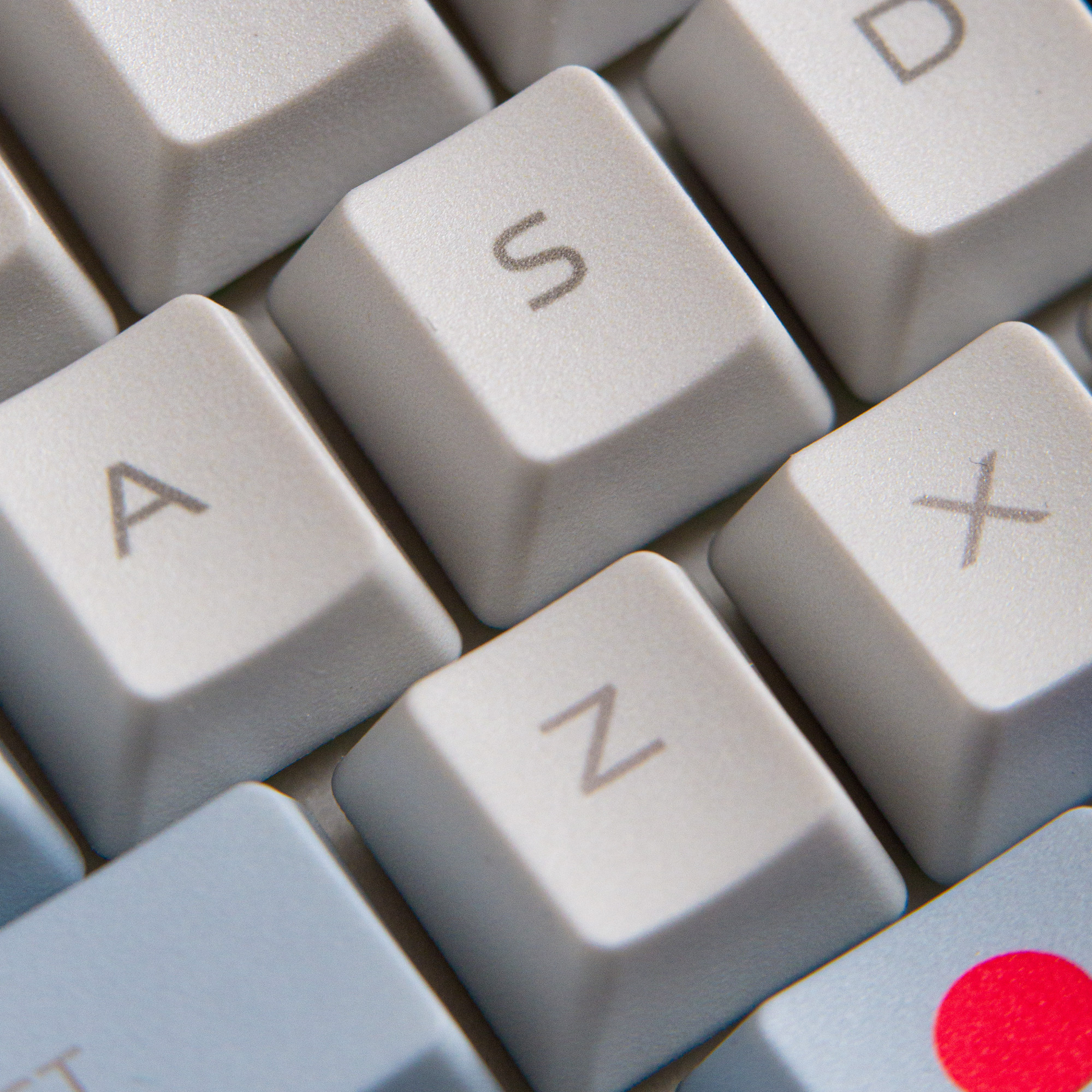

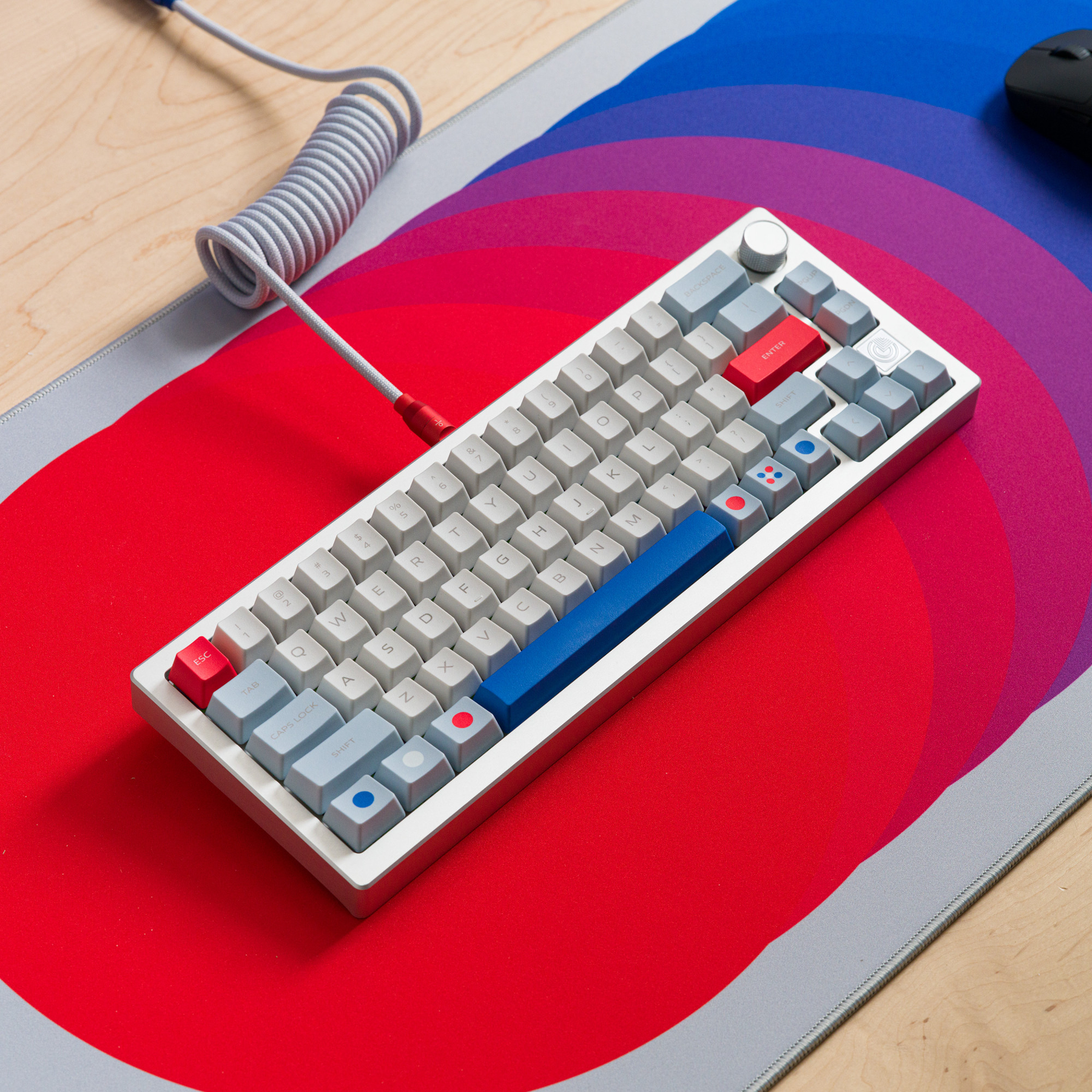

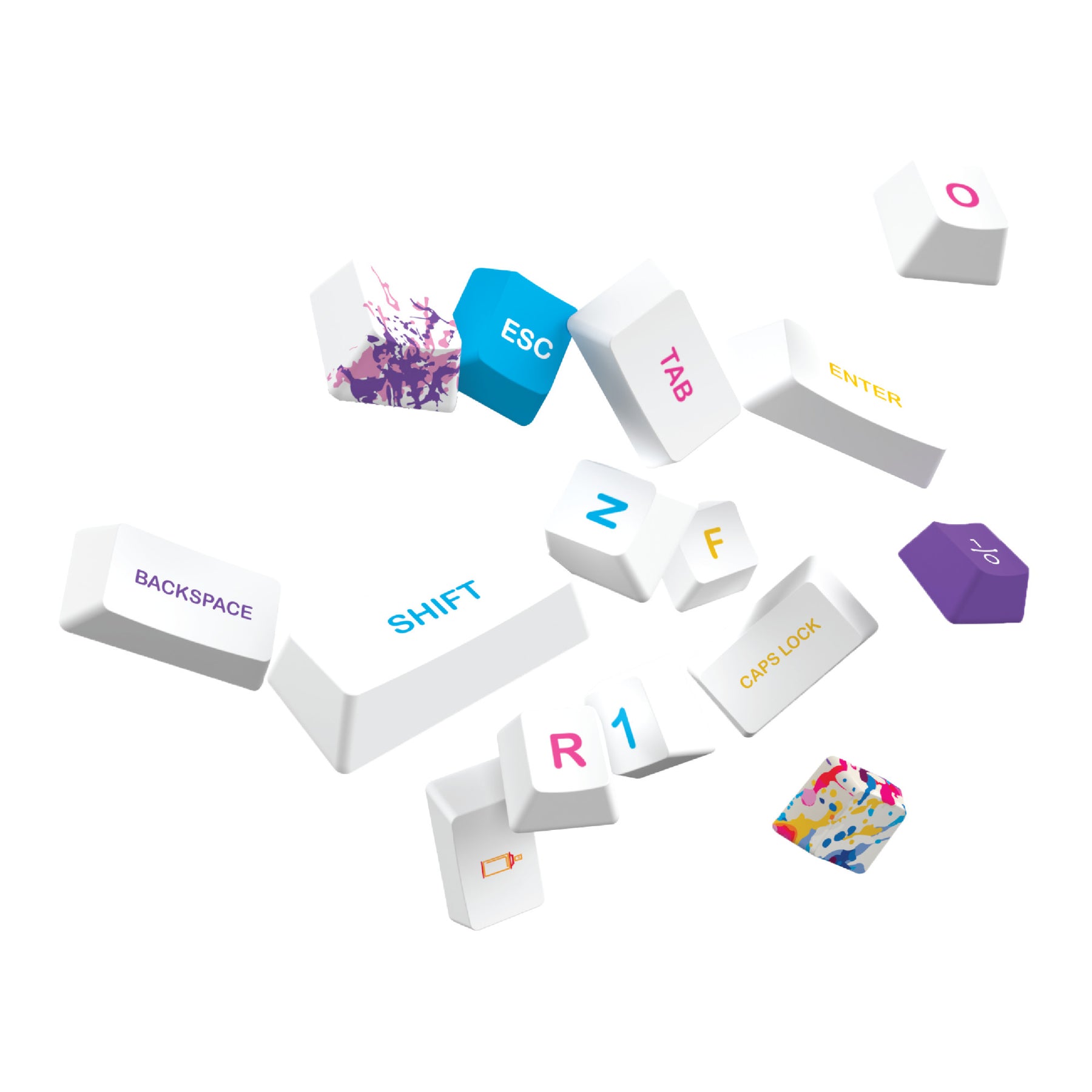

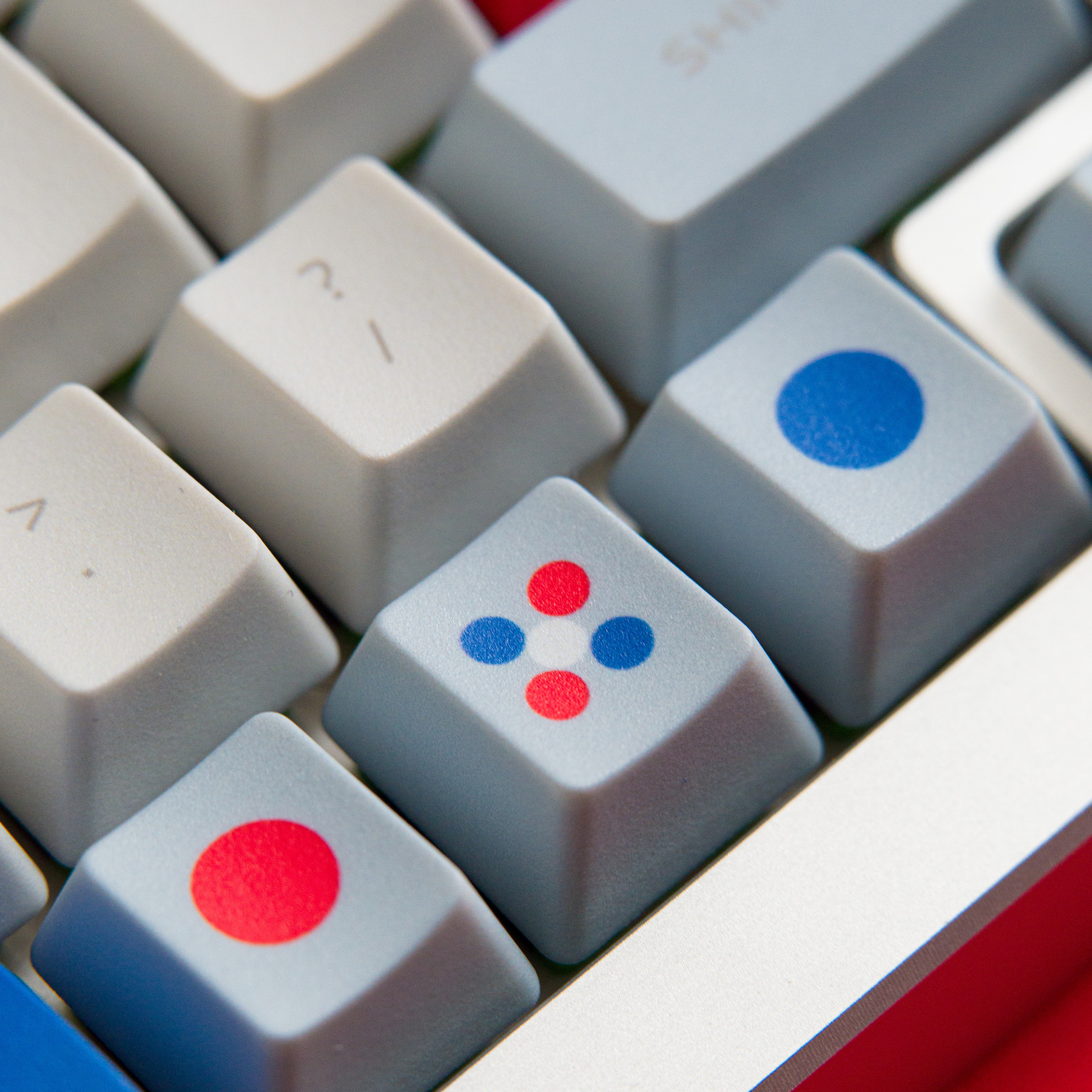

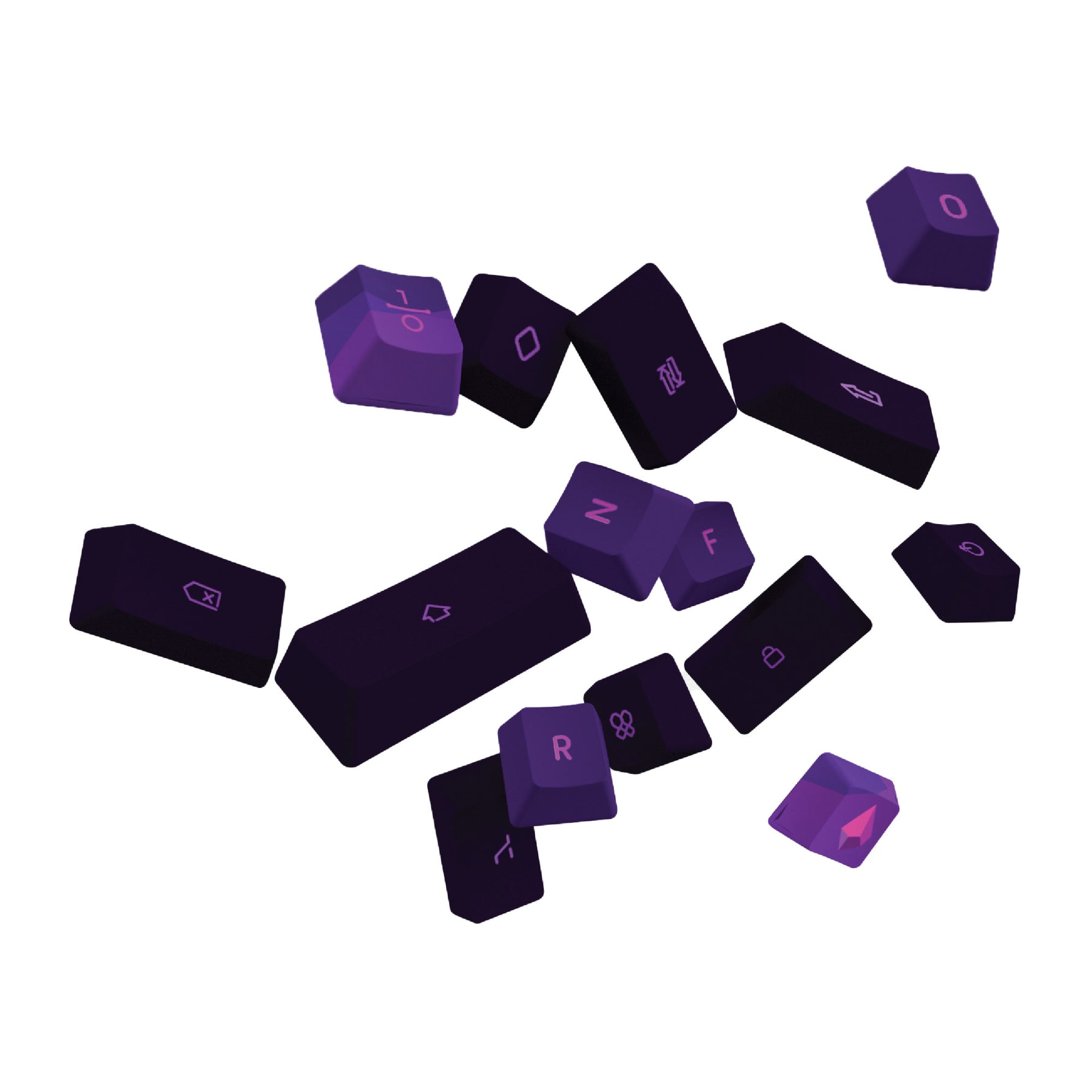

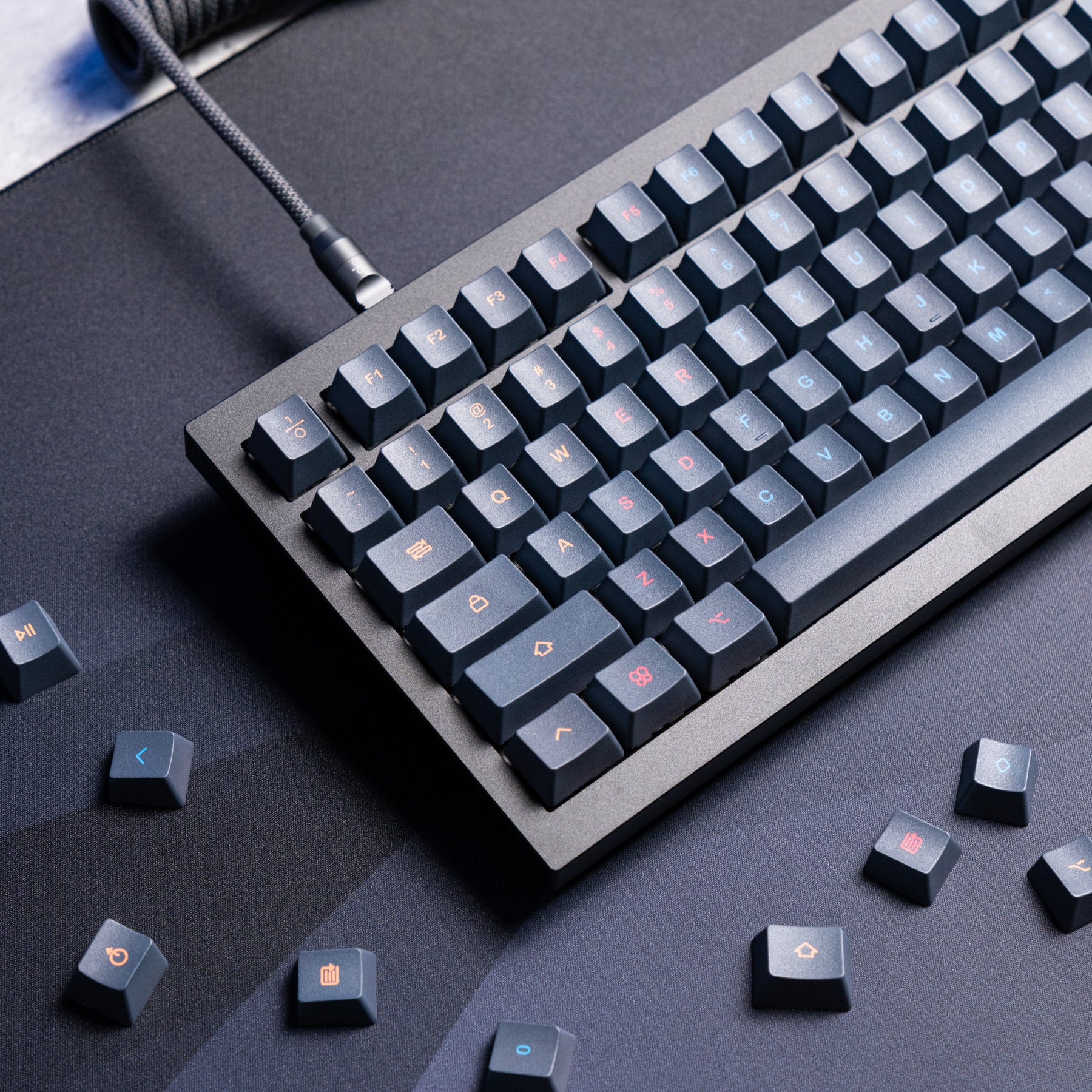

ONEofZERO Custom Keycap Set - Dye Sublimation PBT
Transform your mechanical keyboard with our customizable keycap set!
Please note: These keycaps are designed for use with MX-compatible switches only. These keycaps are not suitable for low-profile or non-mechanical keyboards.

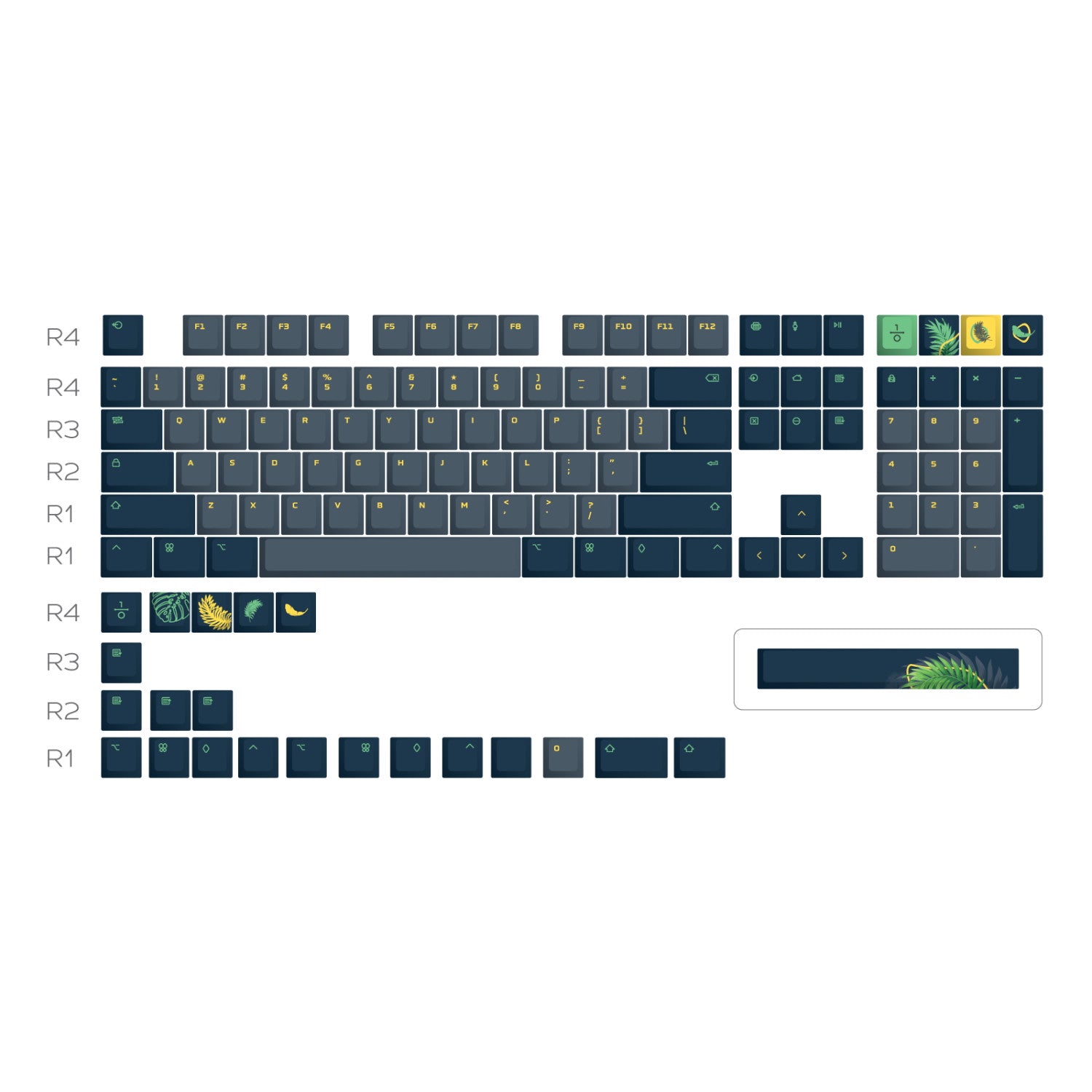

Before purchasing make sure that your keyboard layout is compatible with the set that you are interested in. Each keycap set has a different number of keycaps so please compare with the diagram in the product images.
